The Computer Vision and AI Mini PC

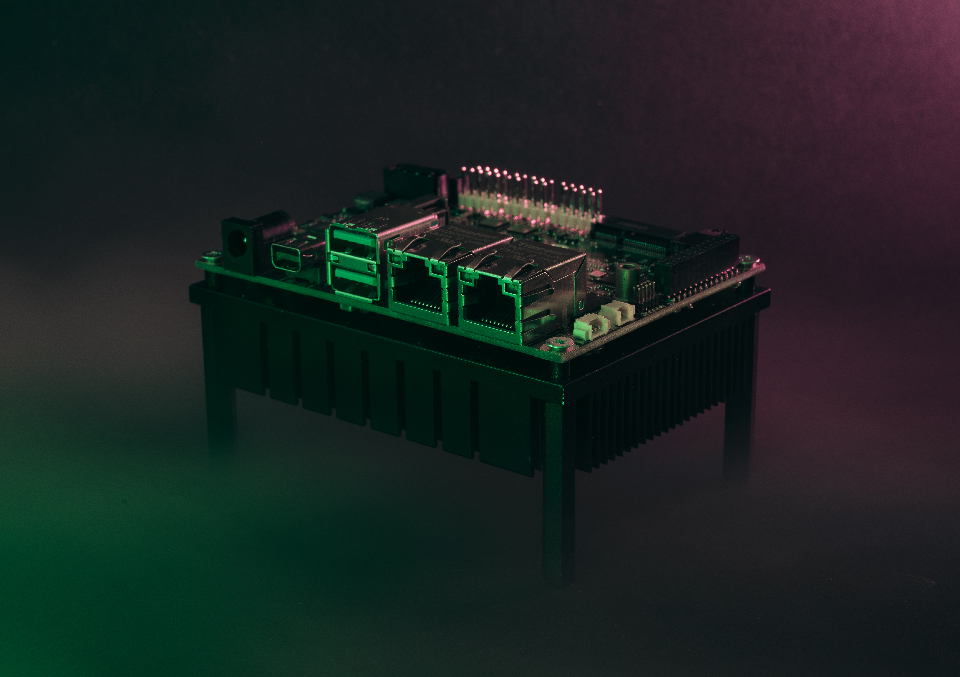

UDOO Vision is the Computer Vision and Artificial Intelligence mini PC based on Intel® Atom® X Series and Arduino-Leonardo microcontroller.

vision-front

vision-retro

Get Started

Learn how to setup your board

Documentation

Need some information? Check our DOCS

Projects

Unleash the versatility of UDOO boards

UDOO VISION

vision-front

X5

vision-front

X7

Processor

Intel® AtomTM x5-E3940

Intel® AtomTM x7-E3950

Cores

Quad Core @1.6GHz, 2MB L2 Cache, 9,5W TDP

Quad Core @1.6GHz, 2MB L2 Cache, 12W TDP

Flash Storage

16 MB Internal Flash

64 M-bit External QSPI Flash

Memory

4GB - 32-bit Quad-Channel LPDDR4

8GB - 32-bit Quad-Channel LPDDR4

Mass Storage

M.2 Key B Slot for optional SSD SATA Gen3 Micro SD card slot

32GB eMMC 5.0

64GB eMMC 5.0

USB

2x USB 3.0 type-A sockets 2x USB 2.0 internal header

Networking

2x Gigabit Ethernet LAN interface M.2 Key E Slot for optional WLAN/BT M.2 Key B Slot for optional WWAN (miniSIM slot included)

Video Interface

1x mini DP++ 1x eDP Connector

Graphics

Integrated Intel® HD Graphics 500 up to 600MHz

Integrated Intel® HD Graphics 500 up to 650MHz

Multimedia

HW video decode: HEVC (H.265), H.264, MVC, VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG HW video encode: HEVC (H.265), H.264, MVC, VP8, VP9, JPEG/MJPEG

Audio

HD audio codec CS4207 Microphone + Headphone combo TRRS connector

Power

DC power jack 12V

Other Interfaces

2x Serial ports (RS-232/RS-422/RS-485) Front Panel, 8x GPIOs connector

OS

Linux

Android

Windows

Dimensions

picoITX form factor: 100x72mm (3,93” x 2,83”)

Arduino Leonardo-compatible

Microcontroller

ATmega32U4 - 8-bit AVR Microcontroller

Other Interfaces

1 UART 1 x i2C 1 x SPI

Arduino Pinout

Female dual row pin header 5V compliant

Digital I/O Pinout

Up to 18 x digital I/O (7 PWM)

Analog I/O Pinout

12 x Analog input

Want to know more?

Download the DATASHEET
