USB-to-TTL Serial Debug Module

Overview

The USB-to-TTL/Serial Debug Module for UDOO NEO is compatible with UDOO Neo.

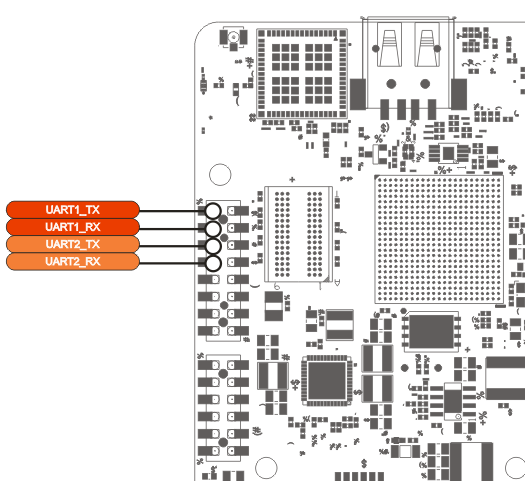

This module provide two serial devices on USB, one for Cortex A9 (Linux/Android) and one for Cortex M4(Arduino™). You have to connect it to pinout header J7. You can find more info useful to locate the pins in the UART Serial Ports section.

How to use

To use the USB-to-TTL/Serial Debug Module for UDOO NEO plug the module and follow the instructions in the Serial Debug Console section.
